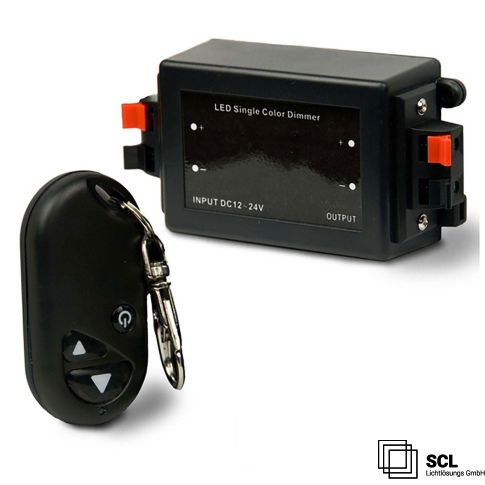

LED Radio PWM controller, 1 channel, 12-24V DC 8A
Article is located in the inlet, please contact the internal sales team
Article number
111091
| Product description | LED Radio PWM controller, 1 channel, 12-24V DC 8A |
|---|---|
| Article number | 111091 |
| GTIN-EAN | 9009377006302 |
| Special features | max. 96W at 12V, max. 192W at 24V, ON/OFF and stepless dimming function via radio remote control. Last setting is saved. Robust terminal connections. Only install and connect when voltage-free! |
| Dimming Specifications | Provides a PWM phase width modulated voltage signal |
| Nominal voltage | 12 - 24 V DC |
| Protection class | IP20 |
| Housing material | Plastic |
| Weight in gramm | 100 |
| Length in mm | 97,0 |
| Width in mm | 54,0 |
| Height in mm | 34,0 |
| Guarantee in years | 2 |
