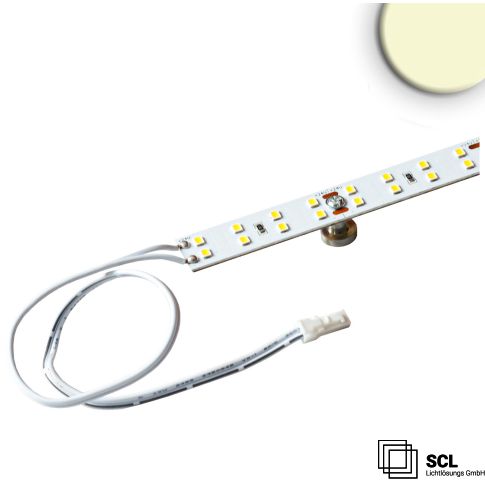

LED T5/T8 Retrofit circuit board 830, 115cm MiniAMP, 184 LED, 24V, 19W, 170 lm/W, warm white dim
In stock
Article number
116027
| Product description | LED T5/T8 Retrofit circuit board 830, 115cm MiniAMP, 184 LED, 24V, 19W, 170 lm/W, warm white dim |
|---|---|
| Article number | 116027 |
| GTIN-EAN | 9009377153990 |
| Special features | Rigid circuit board incl. 3M VHB adhesive tape on the back and 3 holding magnets for fastening, 50mm separation point with drilled hole, 30cm connection cable with MiniAMP male plug on one side, wire cross-section 0,5mm² |
| Nominal voltage | 24 V DC |
| Rated power | 19 W |
| Active power in Watt | 18,8 W |
| Luminous flux in lumen | 3150 lm |
| Color temperature | 3000K |
| CRI (RA) value | 80 |
| Beam angle | 120° |
| Dimmable | Ja |
| Protection class | IP20 |
| Outdoor | N |
| permissible ambient temperature | -10°C - 40°C |
| Housing material | Copper |
| Pitch SMD (mm) | 12.00 |
| Separation point (mm) | 50,00 |
| Weight in gramm | 102 |
| Width in mm | 15,0 |
| Length in mm | 1150,0 |
| Height in mm | 1,0 |
| Lifetime L70|B10 | 50000 |
| Useful life L70|B50 | 75000 |
| Useful life L80|B50 in hours | 66000 |
| Guarantee in years | 5 |
