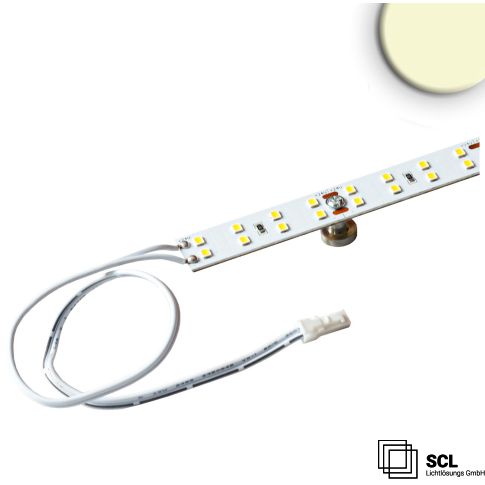

LED T5/T8 Retrofit circuit board 830, 55cm, MiniAMP, 88 LED, 24V, 9W, 170 lm/W, warm white, dimmable
In stock
Article number
116406
| Product description | LED T5/T8 Retrofit circuit board 830, 55cm, MiniAMP, 88 LED, 24V, 9W, 170 lm/W, warm white, dimmable |
|---|---|
| Article number | 116406 |
| GTIN-EAN | 9009377159923 |
| Special features | Wire cross-section 0,5mm² |
| Nominal voltage | 24 V DC |
| Rated power | 9 W |
| Active power in Watt | 8,8 W |
| Luminous flux in lumen | 1500 lm |
| Color temperature | 3000K |
| CRI (RA) value | 80 |
| Beam angle | 120° |
| Dimmable | Ja |
| Protection class | IP20 |
| Outdoor | N |
| permissible ambient temperature | -10°C - 40°C |
| Housing material | Copper |
| Pitch SMD (mm) | 12.00 |
| Separation point (mm) | 50,00 |
| Weight in gramm | 70 |
| Width in mm | 15,0 |
| Length in mm | 550,0 |
| Height in mm | 1,0 |
| Lifetime L70|B10 | 50000 |
| Useful life L70|B50 | 75000 |
| Useful life L80|B50 in hours | 66000 |
| Guarantee in years | 5 |
