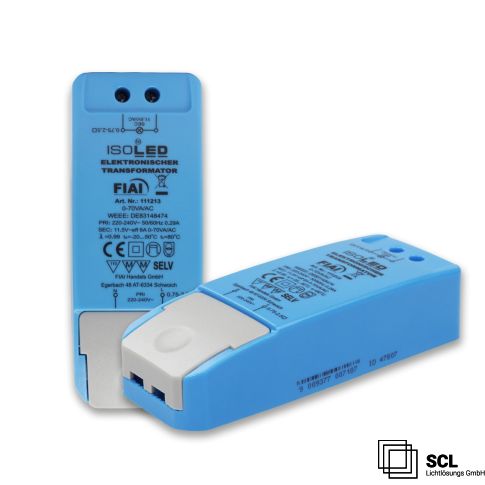

LED transformer 12V/AC, 0-70VA, dimmable, SELV

In stock
Article number
LED transformer 12V/AC, 0-70VA, dimmable, SELV
Prices are only visible for activated users!
More Information
Product description LED transformer 12V/AC, 0-70VA, dimmable, SELV
Article number 111213
GTIN-EAN 9009377007187
Special features incl. overtemperature protection (non-resetting), when using AC transformers, the apparent power of the connected load must be taken into account for correct power rating. If the transformer is dimmed, the reactive power of the connected loads can multiply. Please refer to the PDF document Note on apparent power.
Dimmable Ja
Dimming Specifications dimmbar bei einer angeschlossenen Last >15VA im Bereich von 20-100% der Lichtleistung mit TRIAC Dimmer | Empfehlung: Phasenabschnitt-Dimmaktor verwenden | Bei Lasten <15VA reduziert sich der Dimmrange
Nominal voltage 220 - 240 V AC
Protection class IP20
Housing material Plastic
Weight in gramm 100
Length in mm 113,0
Width in mm 44,0
Height in mm 28,0
Guarantee in years 2
