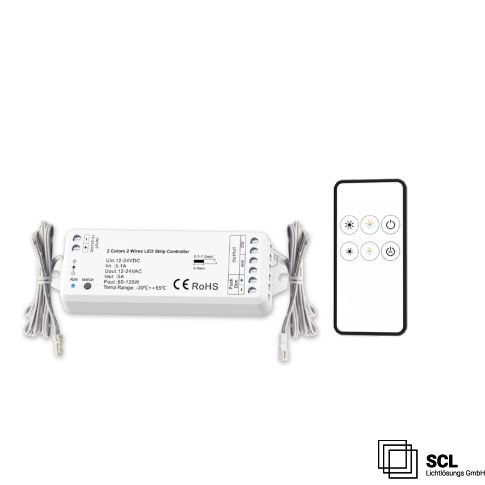

LED white dynamic push/radio PWM dimmer MiniAMP incl. remote control 12-24V DC, 5A
Article is located in the inlet, please contact the internal sales team
Article number
114643
| Product description | LED white dynamic push/radio PWM dimmer MiniAMP incl. remote control 12-24V DC, 5A |
|---|---|
| Article number | 114643 |
| GTIN-EAN | 9009377084560 |
| Special features | 10cm connection cable on both sides (wire cross-section 0,5mm²) with MiniAMP male plug, voltage output with cable and MiniAMP female socket. Attention: Only suitable for dynamic white (CCT) 2-wire (2-pole) flex stripes! |
| Dimming Specifications | Linear dimming from 0-100% in 256 levels with a PWM frequency of 500Hz, control of color temperature and brightness via optionally connected closing switch, enclosed remote control or any other single color/CCT remote control from the product line Sys-Pro from ISOLED |
| Nominal voltage | 12 - 24 V DC |
| Protection class | IP20 |
| Housing material | Plastic |
| Weight in gramm | 98 |
| Length in mm | 114,0 |
| Width in mm | 38,0 |
| Height in mm | 18,0 |
| Guarantee in years | 2 |
