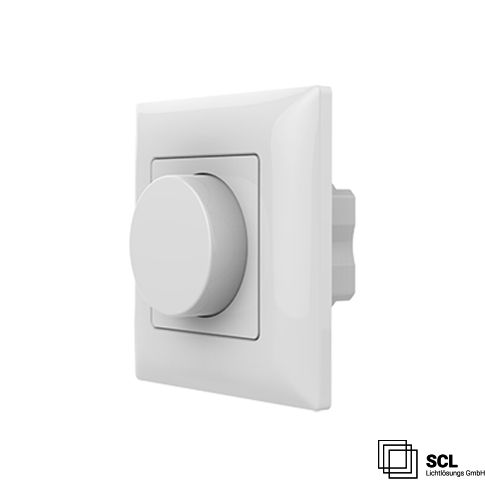

Sys-Pro 1 zone built-in rotary knob radio dimmer with 0/1-10V output, 4A switching relay, 85-265V
In stock
Article number
114546
| Product description | Sys-Pro 1 zone built-in rotary knob radio dimmer with 0/1-10V output, 4A switching relay, 85-265V |
|---|---|
| Article number | 114546 |
| GTIN-EAN | 9009377081767 |
| Special features | outputs a 0/1-10V DC control signal for transformers and luminaires with corresponding interface, with integrated 230V switching relay (350W switching capacity) for transformers and luminaires which do not switch off completely at an incoming signal voltage <1V |
| Dimming Specifications | Please use only a NON-dimmable transformer to ensure a constant DC voltage without PWM noise on the primary side. |
| Nominal voltage | 220 - 240 V AC |
| Protection class | IP20 |
| Housing material | Plastic |
| Weight in gramm | 106 |
| Length in mm | 86,0 |
| Width in mm | 86,0 |
| Height in mm | 48,5 |
| Guarantee in years | 5 |
