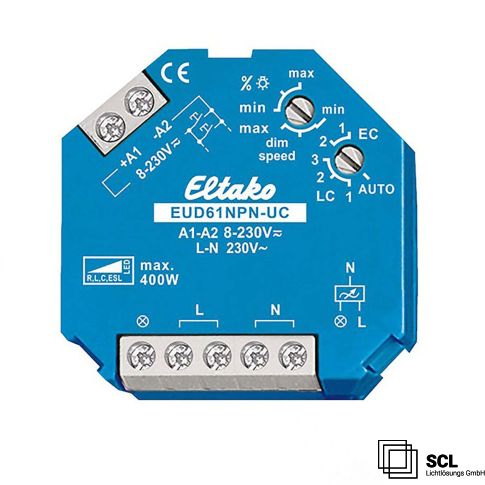

Universal push dimmer Eltako for dimmable 230V illuminants / transformers, 400VA
In stock
Article number
111881
| Product description | Universal push dimmer Eltako for dimmable 230V illuminants / transformers, 400VA |
|---|---|
| Article number | 111881 |
| GTIN-EAN | 4010312107874 |
| Special features | AUTO mode for all load types without minimum load / 400W maximum load, LC1 mode (with maximum load 100W) for LED illuminants which show problematic dimming behavior in AUTO mode, Attention: do not mix capacitive + inductive loads, no secondary-side load disconnection permitted, maximum power should only be used up to max. 90%. Only install and connect when voltage-free! |
| Dimming Specifications | Activation via closing switch (10-230V), lower dimming range can be limited, dimming speed adjustable, automatic load detection when set to Auto after switching on/off twice. |
| Nominal voltage | 220 - 240 V AC |
| Protection class | IP20 |
| Housing material | Plastic |
| Weight in gramm | 30 |
| Length in mm | 45,0 |
| Width in mm | 45,0 |
| Height in mm | 18,0 |
| Guarantee in years | 2 |
