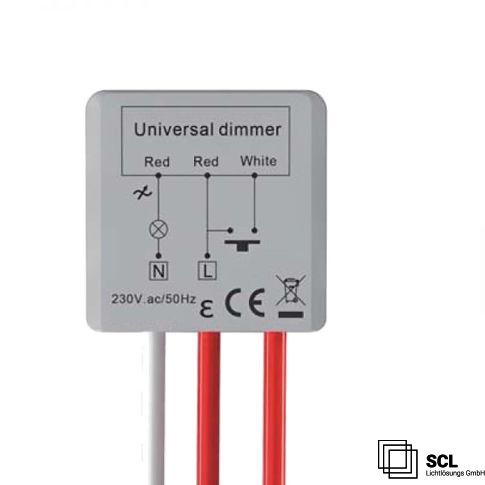

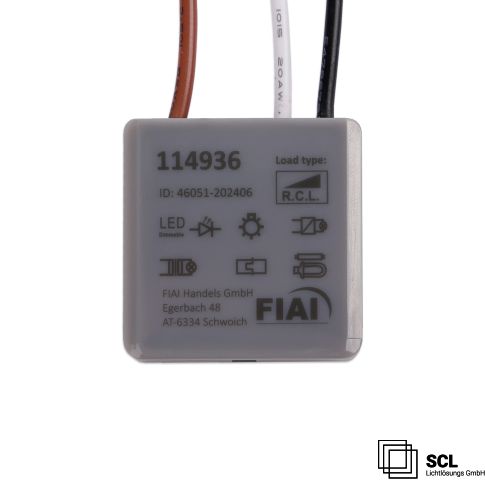

Universal push mini dimmer for dimmable 230V luminaires/transformers, 250VA
In stock
Article number
114936
| Product description | Universal push mini dimmer for dimmable 230V luminaires/transformers, 250VA |
|---|---|
| Article number | 114936 |
| GTIN-EAN | 9009377093685 |
| Special features | Integrated overload, short-circuit and overtemperature protection. The dimming actuator should not be on the same phase line as inductive loads (shutter motor, toroidal transformer, fluorescent tubes, etc.) - this could damage the dimmer! Only install and connect when voltage-free! |
| Dimming Specifications | After switching on, the dimmer automatically adjusts to a brightness of 20% if the connected light source was dimmed below this threshold before switching off. If the dimming level was above 20% before switching off, the same dimming level is output when switching on again. |
| Nominal voltage | 220 - 240 V AC |
| Protection class | IP20 |
| Housing material | Plastic |
| Weight in gramm | 34 |
| Length in mm | 36,0 |
| Width in mm | 36,0 |
| Height in mm | 12,0 |
| Guarantee in years | 2 |
